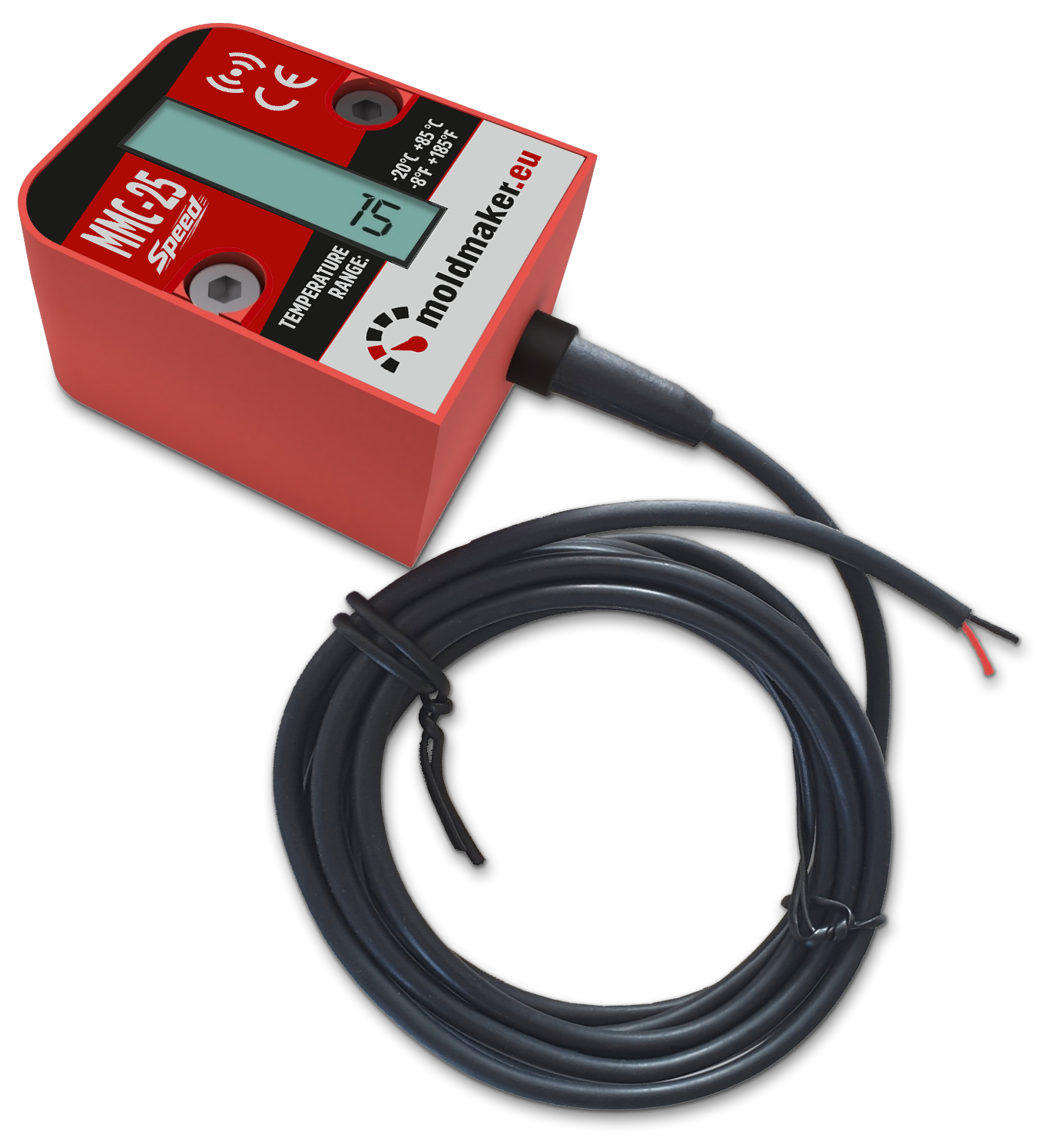

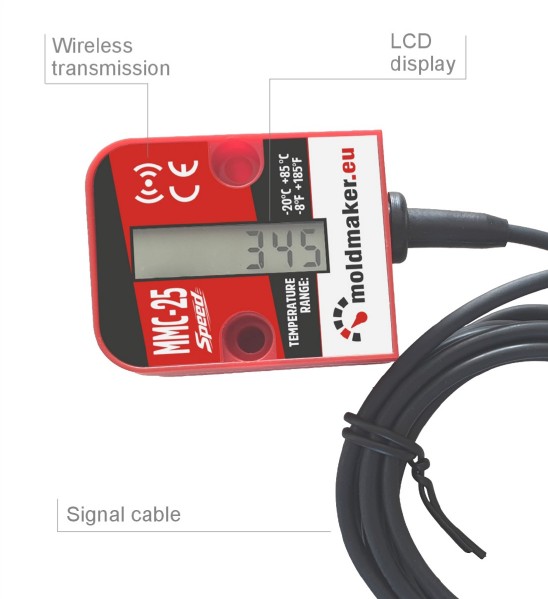

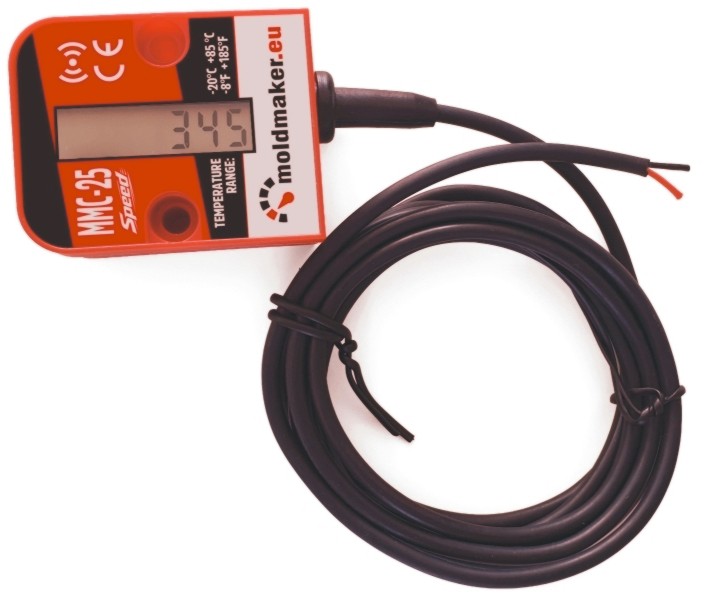

MMC-25 SPEED WIRELESS COUNTER

Description

The MMC-25 SPEED is a high-speed wireless counter from the MoldMaker system, designed for counting at rates of up to 100 Hz. It is intended, for example, for high-speed automated machines or production presses. It is used wherever very fast and reliable counting of machine operating cycles is required.

The counter counts electrical pulses generated by the machine controller or relay. The MoldMaker system correctly assigns the pulses to the tool currently operating on the injection molding machine.

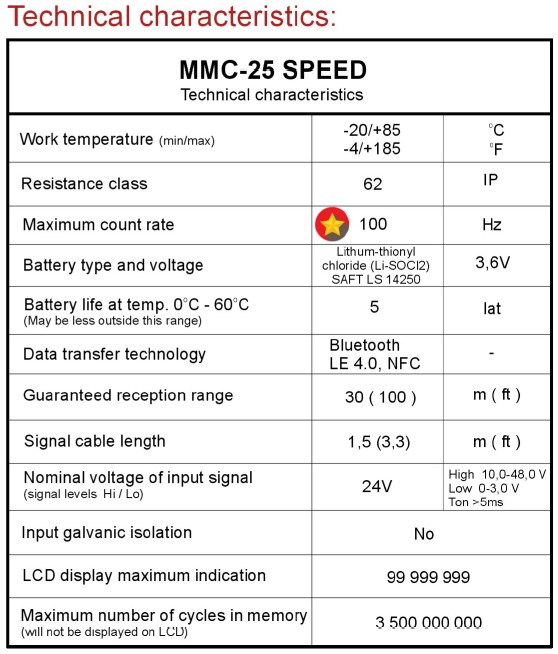

• powered by a built-in battery with an approximate lifetime of 5 years,
• 8-digit LCD display,
• 1.5m control cable accepting electrical pulses from 10V to 48V,
• rectangular pulse duty cycle: 40–60%,
• maximum counting speed: 100 Hz,
• non-resettable cycle memory,
• production cycle time measurement,
• production efficiency measurement with chart recording,
• maintenance reminders,
• disassembly button triggering a notification when the counter is removed from the tool,
• dimensions and mounting screw spacing compatible with typical mold counters,
• IP62 protection rating,
• built-in Bluetooth and NFC transmitter,
• compatible with the MoldMaker Scan app, MMCD Concentrators, and the MoldMaker system,
• temperature resistance from -20°C to 85°C (-4°F to 185°F).

To place an order – contact us via e-mail: moldmaker@moldmaker.eu or your local distributor.
